Managing Insulation

MEP components can have insulation or lining attached.
Managing the addition of removal is done by the specific menu commands under the VectorMEP ribbon.

Insulation ranges

When creating insulation/lining materials in the MEP settings dialogs, predefined ranges can be supplied to set up default insulation sizes associated with MEP sizes.

In any MEP component, you can opt in for the dynamic insulation sizing based on the material ranges. On any dimension change of the MEP component, the insulation thickness will be verified based on the available ranges. If needed, the insulation thickness will be updated accordingly.

Adding insulation/Lining

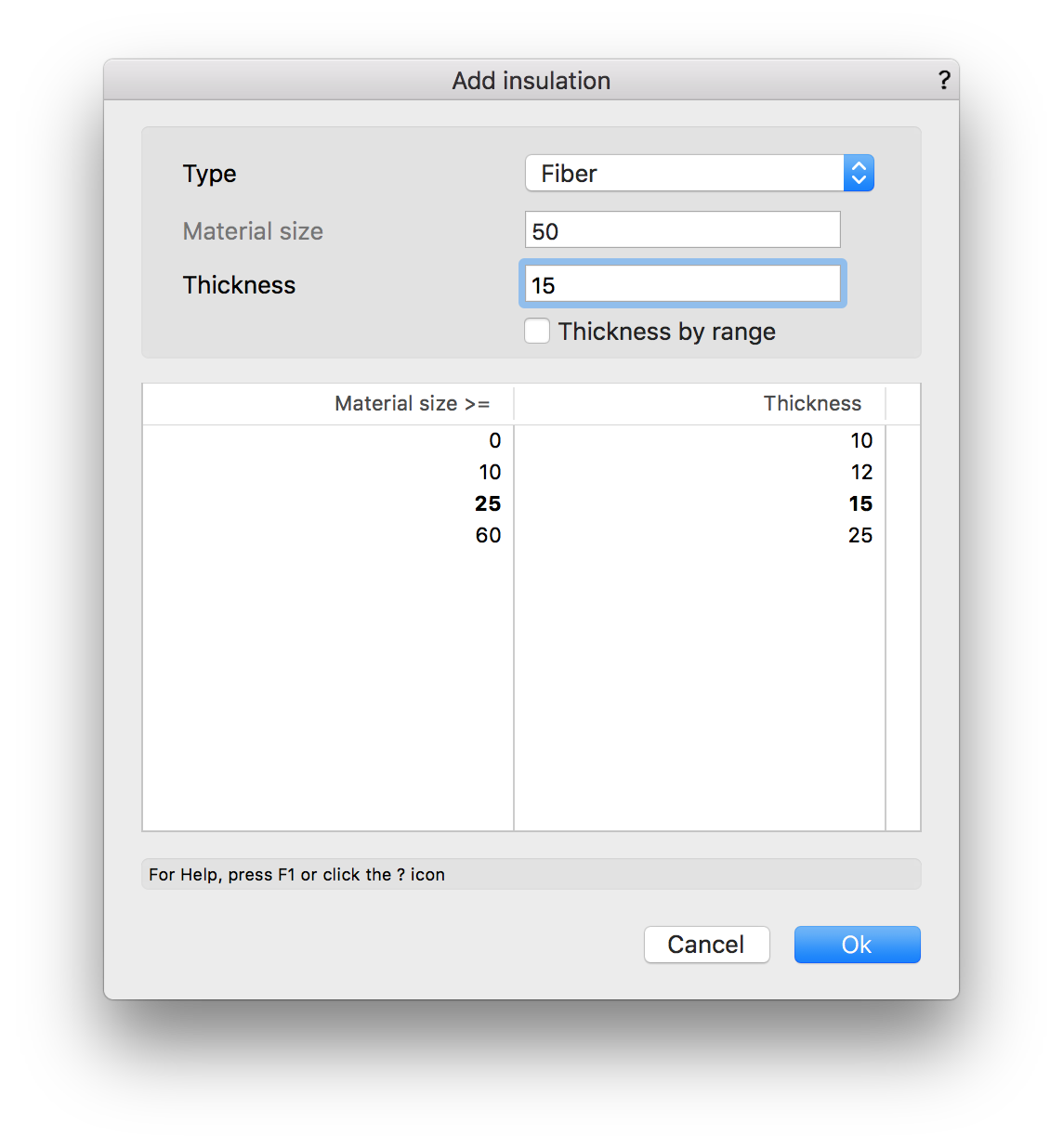

The dialog will suggest a thickness based on the available ranges. The specific range will be highlighted in the listbrowser below.
