MEP Labeling

The MEP Label tool is capable of labeling/tagging all available MEP components. The object is symbol based and uses a predefined record to transfer data into the symbol. Clients can customize this symbol and choose which fields to show.

The MEP Label will automatically position itself vertically on top of the bounding cube. This ensures it is always visible from the top view.

If you have the Vectorworks designer of landmark installed, the tag label from the irrigation tool set can also be used for tagging, which is far more superior.

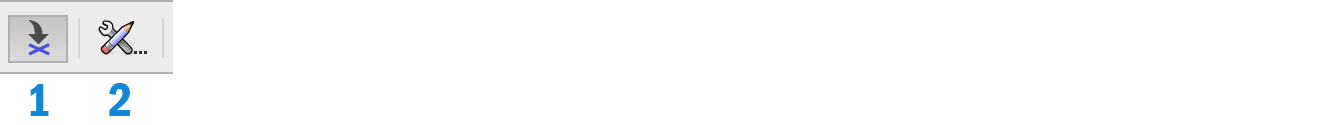

Tool Modebar

1. Select component mode.
2. Object properties.

OIP

• Class
• Dimension text: Switches between the nominal size and the size based on the document settings.
• Show leader: Shows a leader line to the middle of the referenced object.
• Overwrite defaults: Leave blank to use defaults.
  • Prefix
  • Separator
  • Suffix
• Label symbol
  • Symbol
  • Scale
  • Select symbol
  • Edit symbol
